How to make the graphics for Star Driller Ultra

by Taro Omiya on 04/24/15 01:43:00 pm   Featured Blogs

3 comments Share on Twitter    RSS

The following blog post, unless otherwise noted, was written by a member of Gamasutra’s community.
The thoughts and opinions expressed are those of the writer and not Gamasutra or its parent company.





So a lot of praises has been made about the graphics in our Ludum Dare game Star Driller Ultra. How did we make such beautiful graphics in a short amount of time?

Well, actually, it’s a lot easier than you think.

Part 1: Making the model in Blender

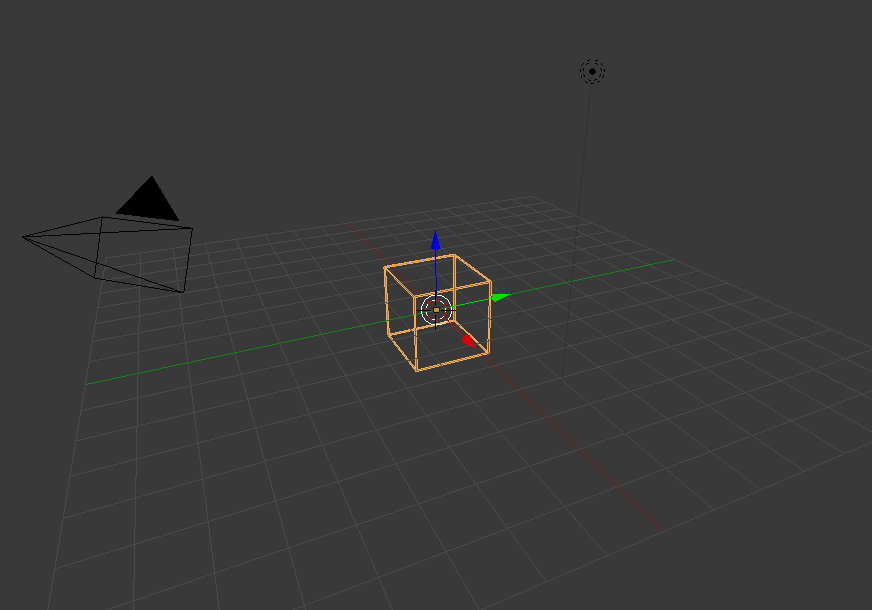

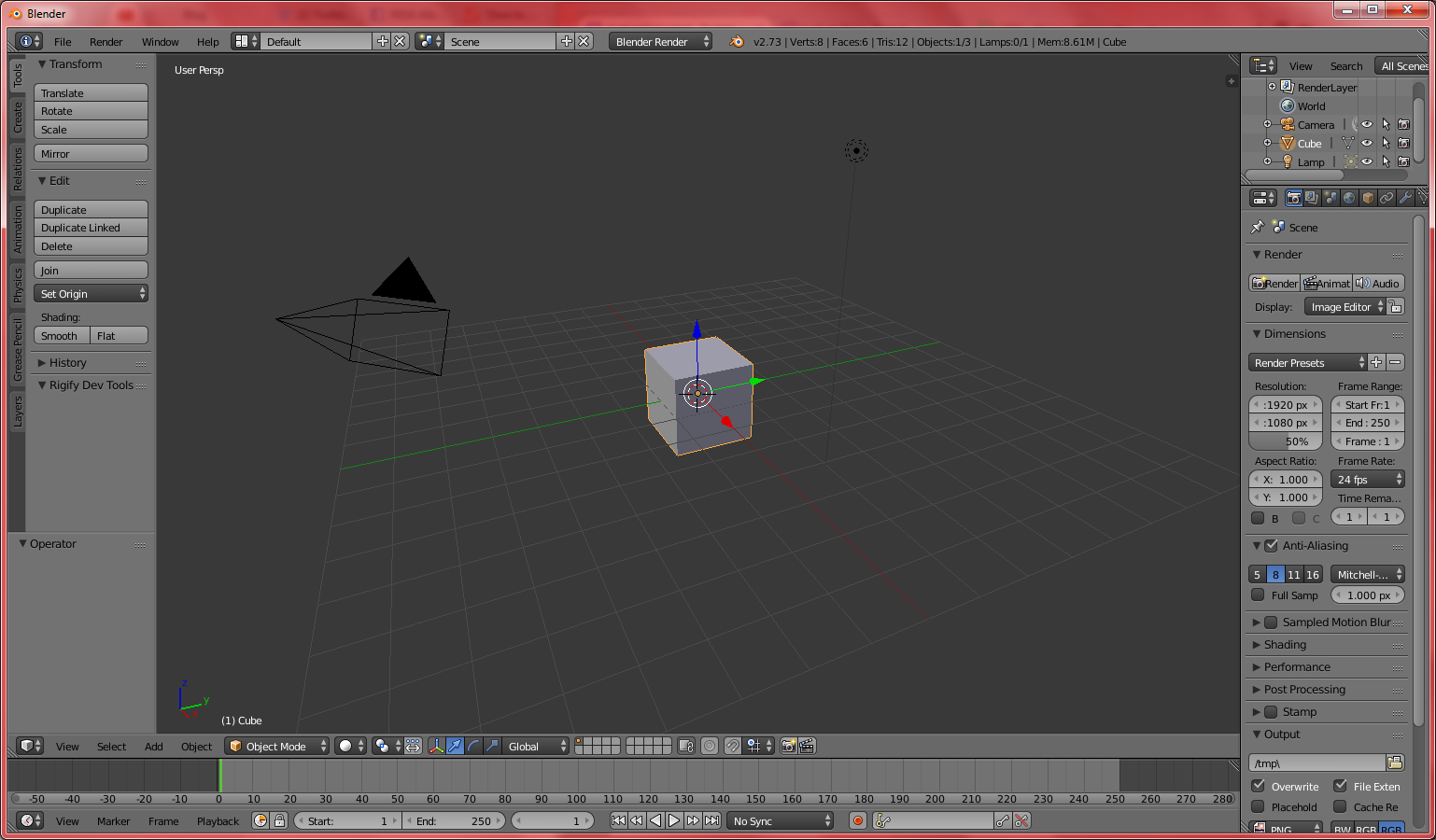

First, open Blender.

Easy enough...

Select that shape with the right mouse button, then go to the right pane and click on the gear tab (called Modifier).

Modifier selected

Click on “Add Modifier”, and select “Wireframe.”

And this is where the magic is about to start!

Now your shape is a wireframe!

It doesn't look that nice, though.

After that, it’s just a matter of adjusting the thickness value on the modifier.

That's more like it!

Now you can save this model in your Unity project’s Assets folder, and let the game engine do the rest.

Part 2: Toon shading in Unity

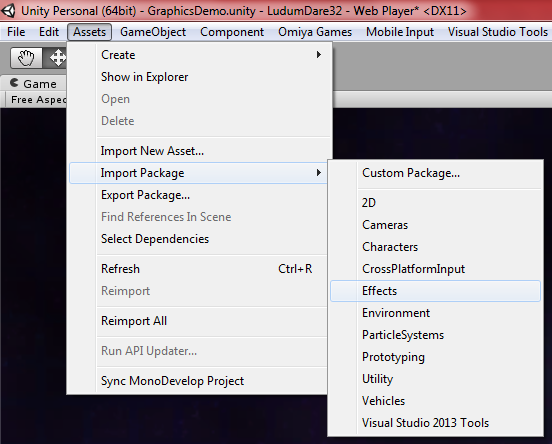

Next, we need to import some toon shaders in Unity. Open Unity, then click on “Assets” under the menu bar, and select “Import Package -> Effects.”

It's a poorly-worded location to put toon shaders into.

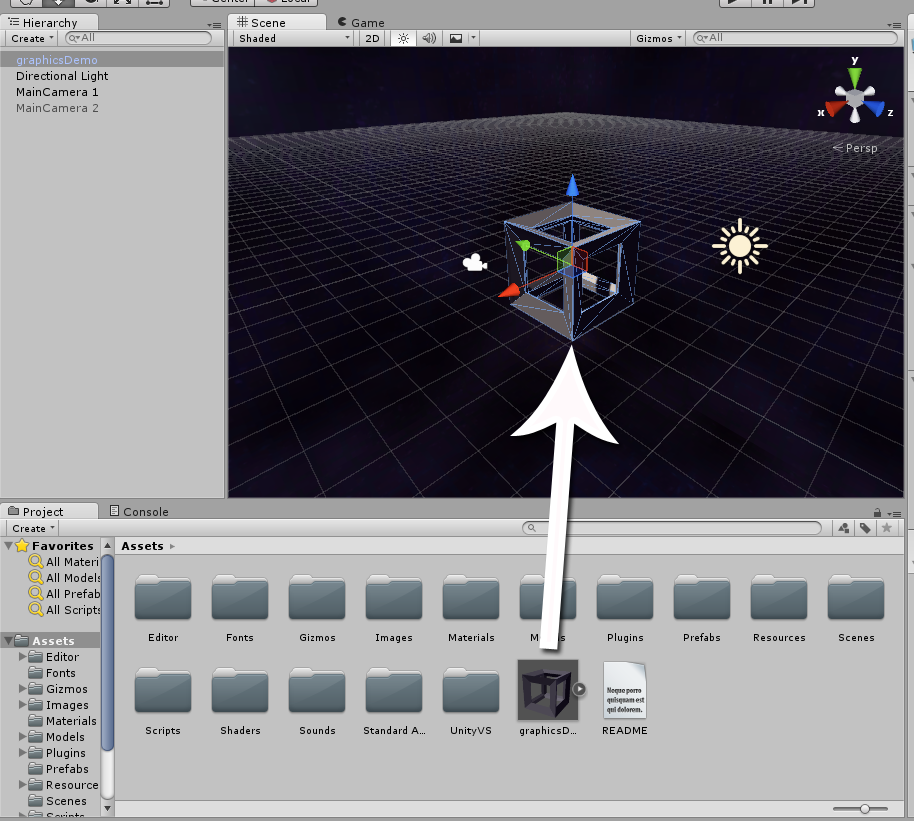

Open the Unity project, and drag your new model into the Scene.

Wait a minute...that's not toon shading!

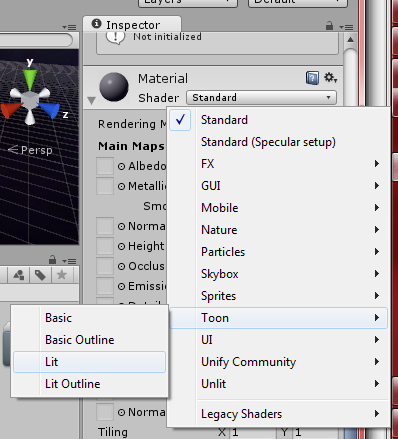

On the Inspector panel, there’s the Material component properties displayed on the bottom. Scroll down there, and change it’s shader to “Toon -> Lit”

Ooooh! So many shaders!

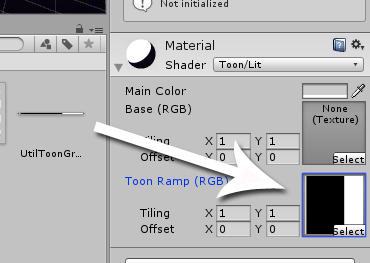

The cube will still look a bit ugly because it doesn’t have a ramp set. Change the ramp to a horizontal monochrome gradient that’s 2 pixel tall, and 256 pixels wide. This will act as the gradient applied to the object in response to the lighting.

A very sharp gradient as a toon ramp.

For Star Driller Ultra, we used the ramp below:

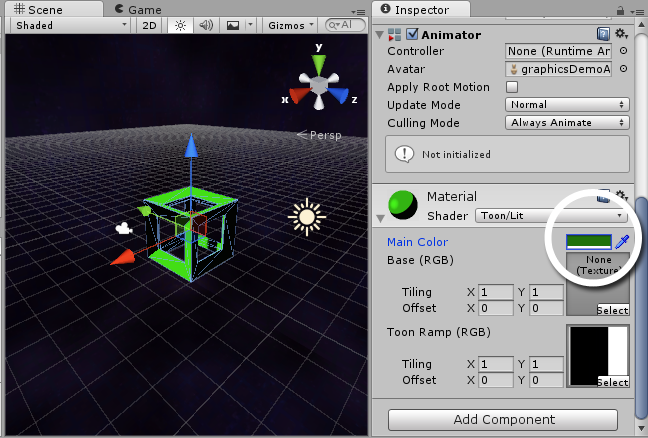

After that, just change the Main Color on the material to whatever you want it to be.

Let's make it unoffensive green.

Part 3: Image effects (bloom!)

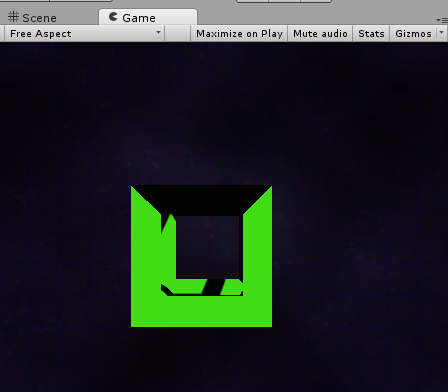

But wait! If you switch from Scene pane to Game pane, you’ll notice the graphics isn’t as awesome as Star Driller Ultra.

Not awesome enough.

That’s because we’re missing some image effects; specifically, bloom. Fortunately, we’ve already imported it, remember?

Again, poorly worded.

Click on your camera, and in the inspector pane, use Add Component to add the following three image effects, in order.

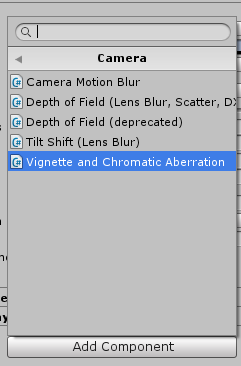

  1. Image Effects -> Camera -> Vignette and Chromatic Aberration

    (Adds darker, blurry parts at the corner of the screen)

    Bloom2

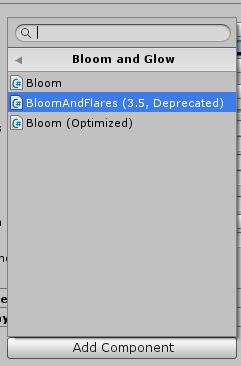

  2. Image Effects -> Bloom and Glow -> BloomAndFlares

    (Adds blooming light effect)

    Bloom3

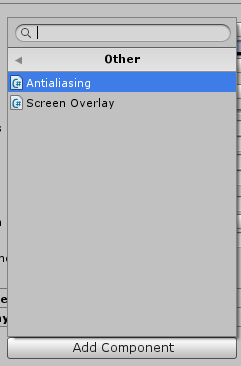

  3. Image Effects -> Other -> Antialiasing

    (Soften shapes with jaggy edges)

    Bloom4

Furthermore, for Star Driller Ultra, We’ve adjusted the values in each of these image effects under the inspector as follows:

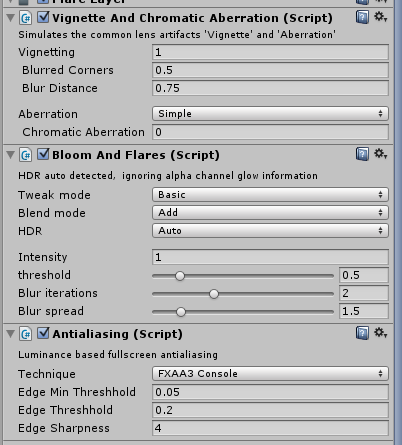

Lots of numbers.

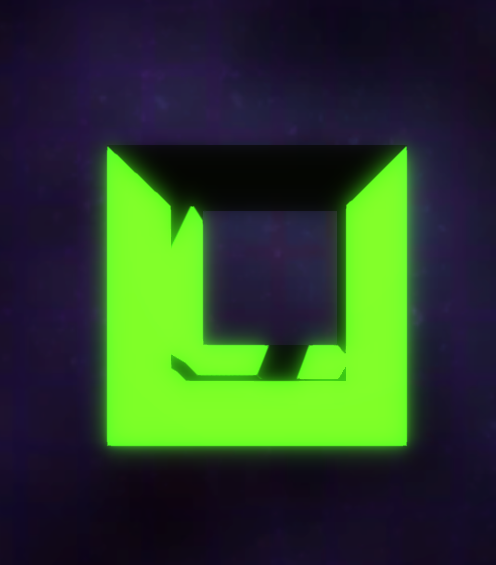

And that’s about it. You can see the results for yourself.

A true work of art.
